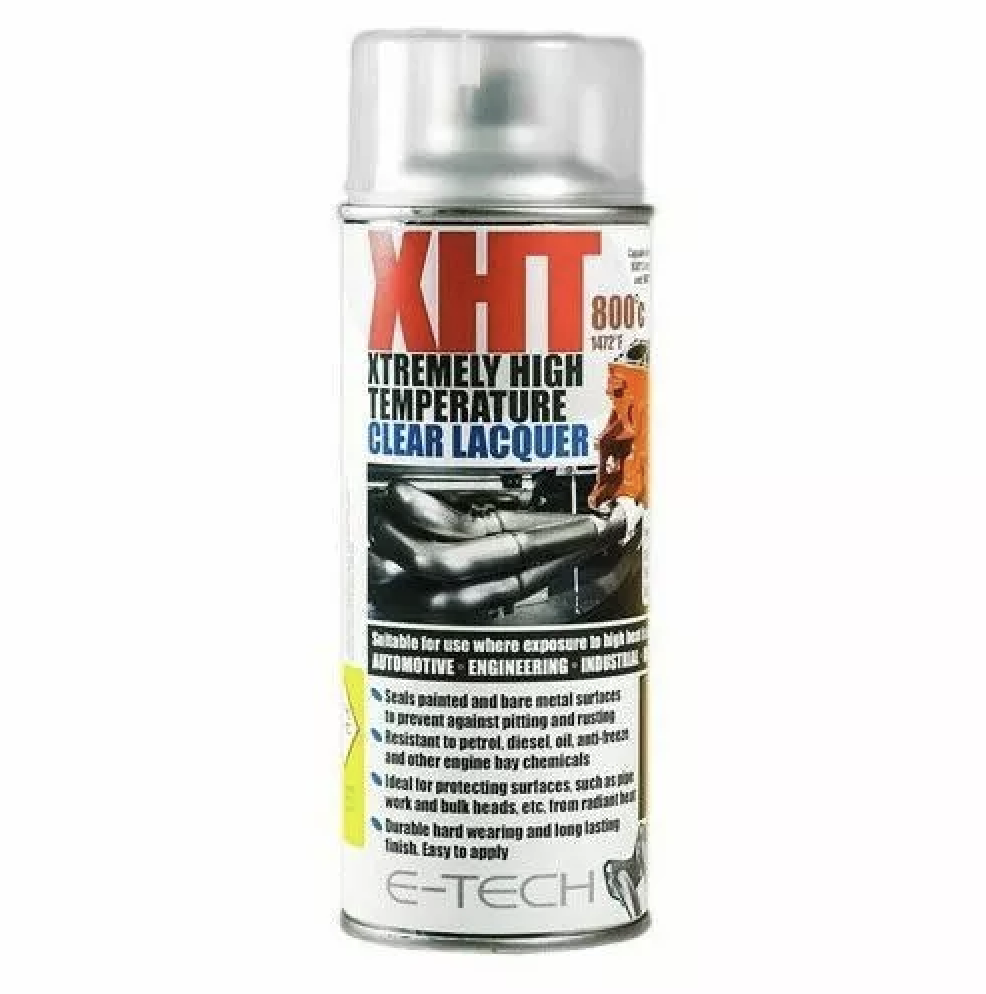

E-TECH XHT HIGH TEMP PAINT – CLEAR LACQUER

E-TECH XHT PAINT – Xtremely High Temperature Paint

.

The E-TECH XHT paint formula has been developed using the latest advances in paint technology. Designed for surfaces that are exposed to extremely high temperatures, this paint will coat, protect and enhance wherever it is applied.

Suitable for applications such as: Automotive, Domestic, Industrial, Marine, Motorsport

Available in a choice of colours: Black, Blue, Graphite, Red, Silver and White

.

Features:

Ideal for engine blocks, rocker covers, exhausts and manifolds

Long lasting high quality finish

Easy to apply with fast curing time

Strong adhesion

Allows personalisation and reconditioning or parts

No Primer needed, superb adhesion to bare steel (metal)

.

Specification:

Can size: 400ml

Colours Available: Black, Blue, Graphite, Red, Silver and White

Rated to a heat temperature of approx. 650°C (1200°F) except for the red XHT paint which is rated to 300°C (575°F) as above this temperature the colour may fade.

Long term performance of this paint on aluminium and stainless steel surfaces cannot be guaranteed. Not suitable for brass and other non-ferrous metals.

.

Instructions:

Surface preparation

Make sure that area to be painted is cool.

Thoroughly clean the area to be painted ensuring that the surface area is dry and free from all traces of rust, grease, dirt, dust, polish, silicone etc. It is important that this is done otherwise the paint will not adhere properly. (Where and engine/parts degreaser has been use, the area to be painted should be thoroughly cleaned and dried to ensure all traces of residue have been removed).

We do recommend steam cleaning if possible.

Key (rough up) the area to be painted using a medium grade abrasive paper or pad. This is particularly important if the surfaces are very smooth.

Wipe clean area to be painted with our E-TECH Technik Surface Deep Cleaner (Part No: ER00102).

Mask off the surrounding area not to be painted using paper and masking tape.

Carry out a compatibility test. Spray on a small inconspicuous area similar to that being painted to check you are happy with the colour and performance of the XHT paint.

Painting instructions

For best results ensure the can and the part you are painting is at room temperature before use (approx. 17°C to 21°C).

For best results spray in a warm dry and dust free area.

Shake the can vigorously for a minimum of 2 minutes.

Hold can 25-30cm from the surface and spray using a smooth side to side motion

VERY IMPORTANT

Apply several thin coats allowing at least 5-10 minutes between each coat. (Do NOT apply thick coats as this will prevent the paint from curing and may lead to the paint cracking or crazing).

Each layer of paint should be touch dry before applying next coat.

Shake can between coats.

After the final coat has been applied, allow to dry for one hour at room temperature. (DO NOT apply any further coats once dry as this will cause the paint to contract and expand at different rates during the curing process causing crazing)

After use turn the can upside down, spray for several seconds to clear the nozzle

Curing

Heat the painted part for 60 minutes at 180°C in order to harden and cure the paint. (Some smoke may develop during this hardening process). We recommend heating the part by either starting the engine if the part is still attached or by using an external heat source. Please monitor the heat temperature ranges carefully.
